AIR FILTER FOR GAS TURBINE COMPRESSOR

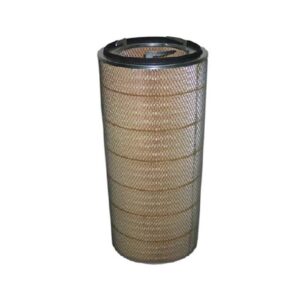

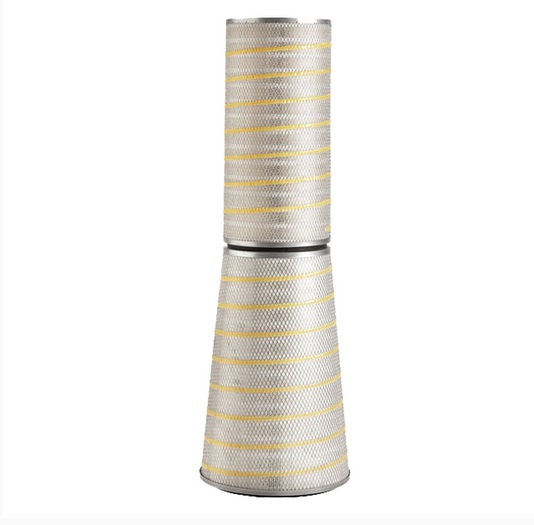

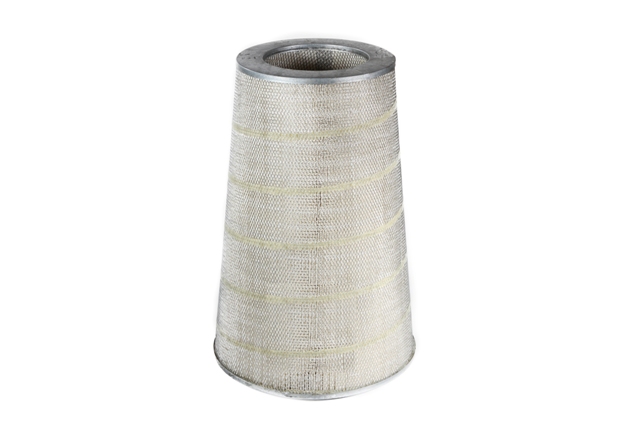

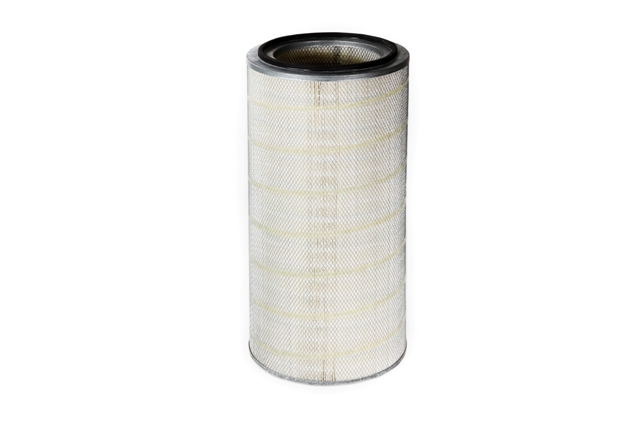

GI3437 (Cylindrical) GI3436(Conical)
| cylindrical | conical | |
| Filter area | 21.4 m² | 25.4 m² |
| Filter material | Special treated cellulose with 15±5% PET
Enhanced by nano fibers |
|
| Air Flow Rate | 2500 m³/hr | |
| Initial Pressure Drop (Cylindrical + Conical air filter) | 150-200 pa | |
| Final recommended Pressure Drop
(Cylindrical + Conical air filter) |
800 pa | |
| Cleaning Cycle Start Pressure | 650 pa | |
| Cleaning Cycle Start Pressure | 450 pa | |
| DP Alarm Set Point | 1000 pa | |
| Material of bottom and top end caps | Galvanized Steel(thickness 0.7 – 0.9 mm ) | |
| Material of Inner & Outer Liners | Expanded metal mesh
( Galvanized Steel thickness 0.7 – 0.9 mm ) |
|
| Pleat binder | 5 rows of hot melt on outer liners | |
| Compound in caps ( 2 Side glue) | Polyurethane ( 2 component adhesive) | |
| Gasket | Polyurethane(foamed) seamless, Molded in place | |
| Lifetime in normal operation * | 16000 HRS | |
| Filter efficiency classification According to DIN EN779:2012 ( test with alcohol vapor) | F7,F8,F9 CLASS | |
| Average Efficiency ( for 0.4 µm particle size ) | >95% | |
| Average Arrestance Efficiency | >99% | |
| Packaging: Each filter will be packaged in a five – layer carton box with nylon shrink separately. 26 cartons of cylindrical filter on a wooden pallet & 12 cartons of conical filter on a wooden pallet. Stretched by nylon and reinforced by straps.
Net weight : Conical Filter app. 7.1 kg Cylindrical Filter app. 6.2 kg |
||
